Art. 835X Inel ancorare cu suruburi de fixare

Art. 835X Inel ancorare cu suruburi de fixare

De la 362,49 lei

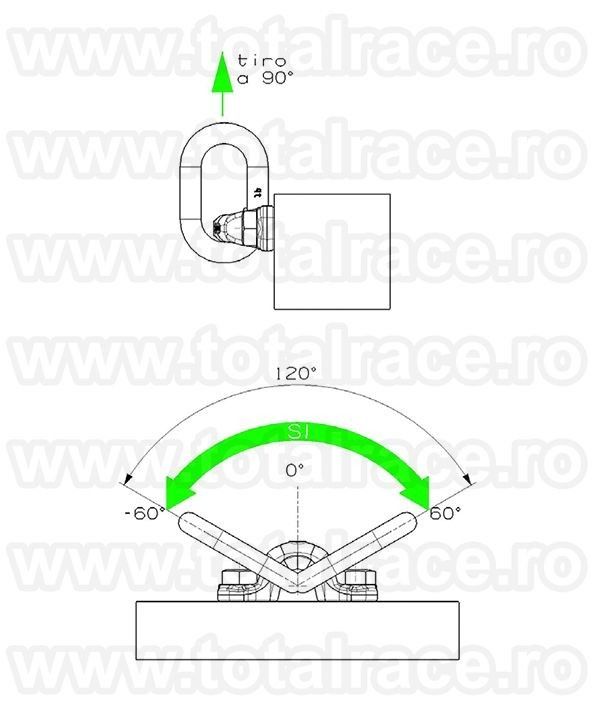

Ring for orientation at 120 °
Screw included in the package
Hex head screw burnished black cl 10.9 in compliance UNI5739 / DIN933
Safety coefficient 4

Marime

Anulează

SKU: Nu se aplică Categorie: INELE RIDICARE & ANCORARE Etichete: inel ancorare, Inel ancorare cu suruburi de fixare

Ring for orientation at 120 °
Screw included in the package
Hex head screw burnished black cl 10.9 in compliance UNI5739 / DIN933
The anchorage bracket may be used in total safety with a maximum of 20.000 lifting full loads
Suitable for lifting in safety conditions in compliance to the machine directive 2006/42/EC
Safety coefficient 4
Screw, bracket and ring tested at 100% magnaflux
Realized with high resistance steel
Painted with epoxy
Tested to 20.000 cycles of fatigue

Greutate	Nu se aplică
Marime	M20, M24, M30, M36, M42, M45, M48

Date tehnice

Art. 835X Inel ancorare cu suruburi de fixare

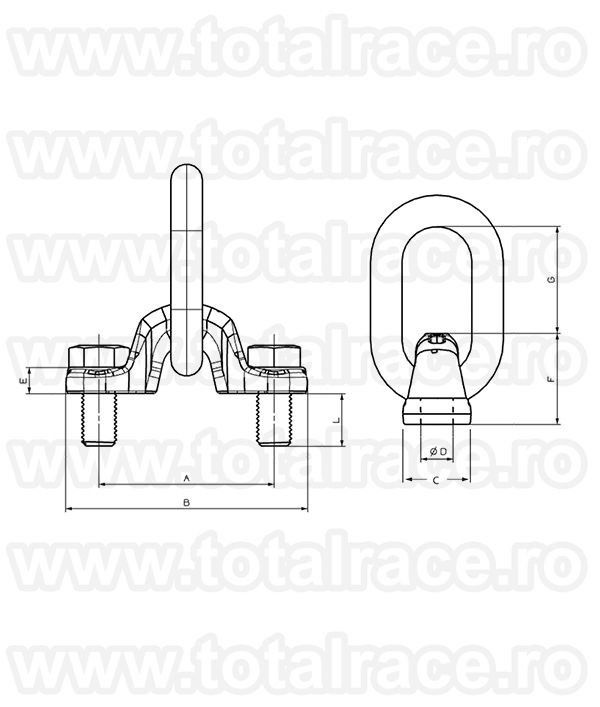

Art. 835	Marime	WLL	Dimensiuni (mm)								Dimensiune inel	Ch	Greutate proprie
Stock No.	mm	tone	A	B	C	ØD	E	F	G	L	mm	mm	Kg
C835X04	M20	4	100	138	39	21.5	15	52	61	35	18x85x40	30	1.2
C835X067	M24	6.7	120	165.5	48	25.5	19	63	87	41	22x115x50	36	2.5
C835X10	M30	10	160	216	62	31.5	25	78	106	45	26x140x65	46	7.1
C835X16	M36	16	175	250	69	37	29	90	112	61	32x150x70	27*	7.5
C835X20	M42	20	200	290	90	43.5	43	116	140	67	40x190x100	32*	9.3
C835X25	M45	25	200	290	90	48	43	116	140	67	40x190x100	36*	10.2
C835X30	M48	30	200	290	90	51	43	116	140	77	40x190x100	36*	10.2

Art. 835	Marime	WLL										Max. tightening couple
Stock No.		1 0°	2 0°	1 90°	2 90°	2 0-45°	2 45-60°	2 unsymm.	3-4 0-45°	3-4 45-60°	3-4 unsymm.	Nm
C835X04	M20	4	8	4	8	5.6	4	4	8.4	6	4	250
C835X067	M24	6.7	13.4	6.7	13.4	9.5	6.7	6.7	14	10	6.7	400
C835X10	M30	10	20	10	20	14	10	10	21	15	10	500
C835X16	M36	16	32	16	32	22.4	16	16	33.6	24	16	800
C835X20	M42	20	40	20	40	28	20	20	42	30	20	1304
C835X25	M45	25	50	25	50	35	25	25	52.5	37.5	25	1630
C835X30	M48	30	60	30	60	42	30	30	63	45	30	1981
