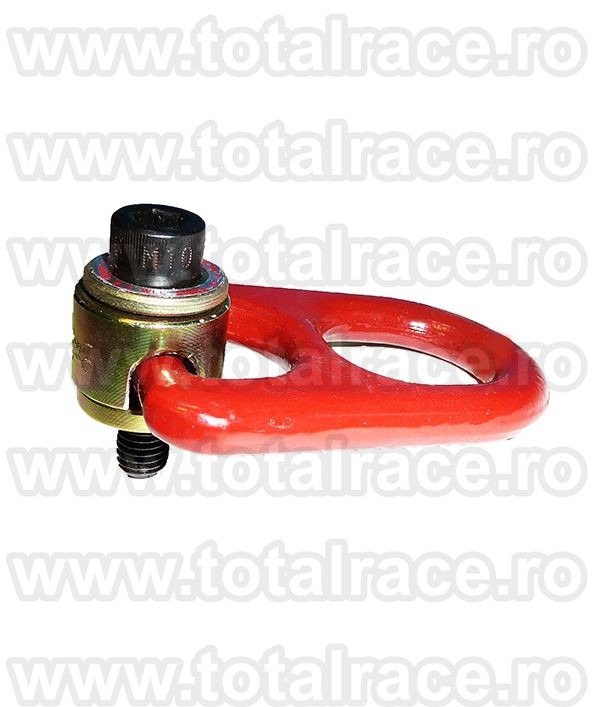

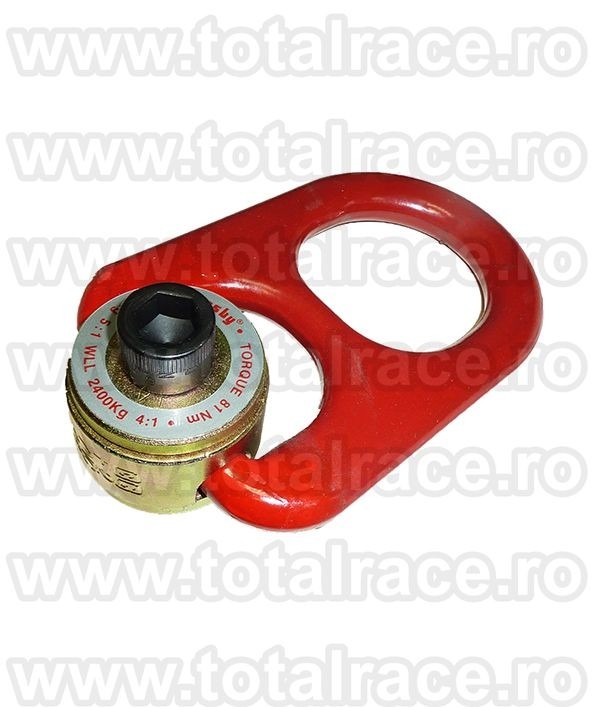

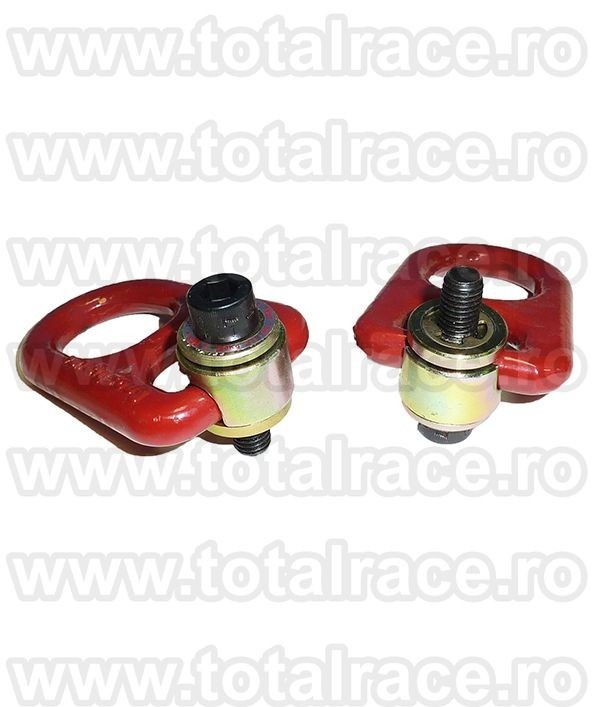

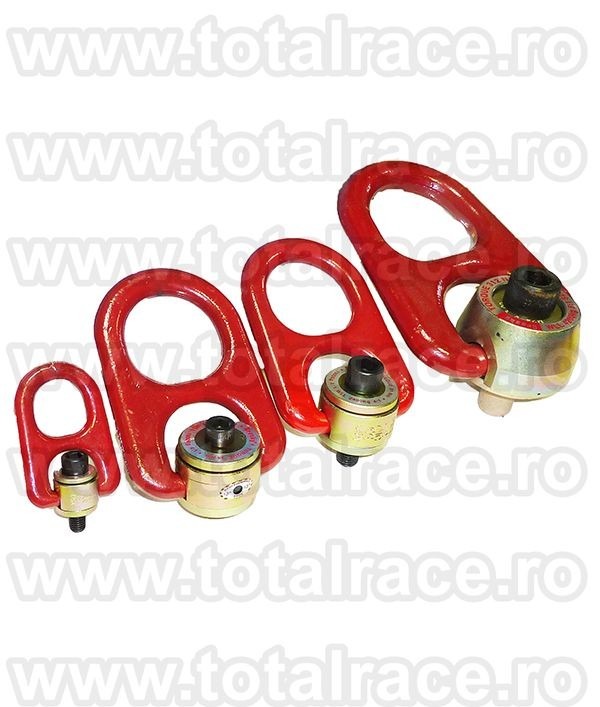

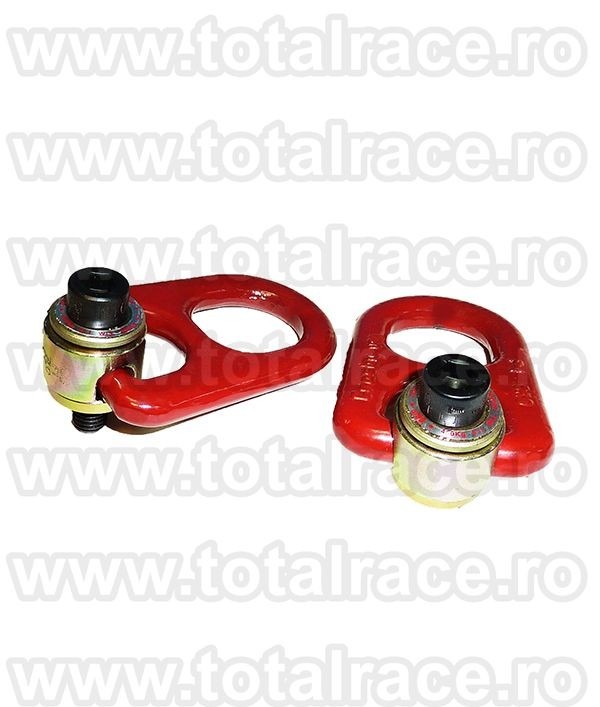

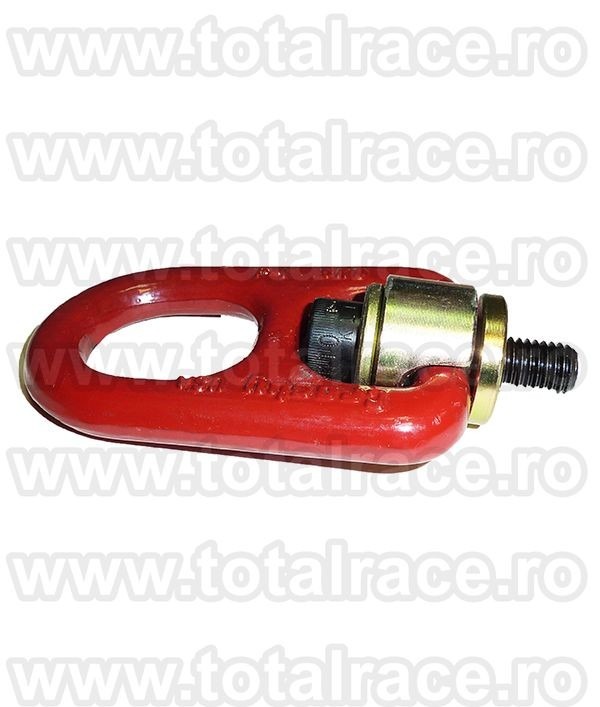

Inel flexibil HR-1000M Crosby

Marime

Anulează

SKU: Nu se aplică Categorie: INELE RIDICARE & ANCORARE Etichete: inel ridicare flexibil, inele ridicare flexibile Crosby, inel rotativ Crosby

Inelele forjate sunt prevazute cu urmatoarele:
Numele Crosby sau „CG” marcat vizibil „ In Relief” si codul PIC pentru trasabilitatea materialului
Durabilitate mare care conduce la cresterea „Rezistentei” necesare in conditiile de lucru neprielnice ce pot aparea
Deschidere mai mare decat modelele standard de Inelele de Ridicare Rotative.
Saiba superioara are un cod de culori pentru o identificare usoara ( Rosu pentru filet UNC si -Argintiu pentru filet Metric)
Sarcina Limita de Lucru (W.L.L.) si valoarea Cuplului Recomandat sunt permanent stantate pe fiecare saiba.
Testate individual cu o Sarcina de Proba de 2-1/2 ori Sarcina Limita de Lucru (W.L.L.).
Disponibil cu filet Metric.

Date tehnice

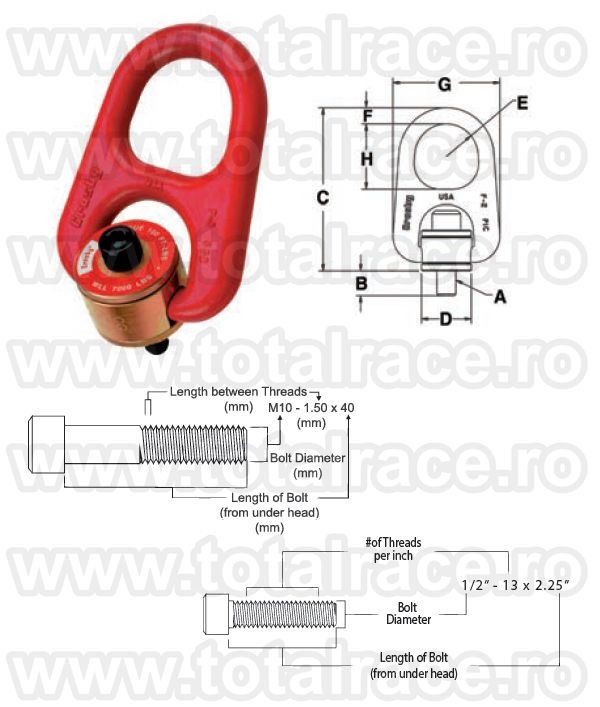

HR-1000M	Working Load Limit (kg)*		Torque	Dimensions (mm)								Weight Each
Stock No.	At a 5:1 Design Factor***	At a 4:1 Design Factor***	Nm	Bolt Size A	Eff. Thread Projection Lenght B	C	D	Radius E	F	G	H	Kg
1068307	400	500	10	M8 x 1.25 x 40	15.2	93.7	24.6	15.7	11.2	57.7	35.1	0.3
1068316	450	550	16	M10 x 1.50 x 40	15.2	93.7	24.6	15.7	11.2	57.7	35.1	0.3
1068325	1050	1300	38	M12 x 1.75 x 55	15.5	162	49.8	31.8	19.1	107	63.5	1.5
1068334	1900	2400	81	M16 x 2.00 x 65	25.5	162	49.8	31.8	19.1	107	63.5	1.5
1068343	2150	2700	136	M20 x 2.50 x 70	30.5	162	49.8	31.8	19.1	107	63.5	1.6
1068352	3000	3750	136	M20 x 2.50 x 80	25.4	220	75.2	41.4	25.4	159	82.6	4.6
1068361	4200	5250	312	M24 x 3.00 x 90	35.4	220	75.2	41.4	25.4	159	82.6	4.8
1068370	7000	8750	637	M30 x 3.50 x 140	66.2	285	94.2	50.8	31.8	199	102	9.7
1068389	11000	13750	1005	M36 x 4.00 x130	56.2	285	94.2	50.8	31.8	199	102	10.2
Ultimate Load is 5 times the Working Load Limit. * Ultimate Load is 4.5 times the Working Load Limit for 317.5 kg Hoist Ring when tested in 90 degree orientation. *** Individually proof loaded to 2-1/2 times the Working Load Limit based on the 4:1 design factor. † Long Bolts are designed to be used with soft metal (i.e., aluminum) workpiece. While the long bolts may also be used with ferrous metal (i.e.,steel & iron) workpiece, short bolts are designed for ferrous workpieces only. ‡ Bolt specification is an Alloy socket head cap screw to ASTM A 574. ‡‡ Bolt specification is a Grade 12.9 Alloy socket head cap screw to DIN 912. NOTE: The tightening torque values shown are based upon threads being clean, dry and free of lubrication.
